| COMMON NAME |
HYDROXYPROPYL METHYL CELLULOSE |
| ABBREVIATION |
HPMC |
| CAS NO. |
9004-65-3 |
| STANDARDS COMPLIANT |
ENTERPRISE STANDARD |
| CHEMICAL FORMULA |
R=CH2CH(CH3)OH |
TECHNICAL DATE SHEET:
| ITEM |
HE |
HE |
HJ |
HK |
| METHOXY |
28-30% |
27-30% |
16.5-20% |
19-24% |
| HYDROXYPROPOXY |
7-12% |
4-7.5% |
23.0-32.0% |
4-12% |
| GEL TEMPERATURE |
58-64ºC |
62.0-68.0ºC |
70-90ºC |
| MOISTURE |
5% |
| ASH CONTENT |
2.5% |
| PH 1% SOLUTION 25ºC |
5.0-8.5 |
VISCOSITY SPECIFICATION:
| SPECIFICATION |
VISCOSITY RANGE(mpa.s) |
SPECIFICATION |
VISCOSITY RANGE(mpa.s) |
| 300 |
300-500 |
70K |
60,000-80,000 |
| 5K |
4,000-6,000 |
80K |
70,000-90,000 |
| 8K |
6,000-10,000 |
90K |
70,000-110,000 |
| 10K |
8,000-12,000 |
100K |
80,000-120,000 |
| 20K |
20,000-30,000 |
110K |
90,000-130,000 |
| 30K |
25,000-35,000 |
120K |
100,000-140,000 |
| 40K |
30,000-50,000 |
130K |
110,000-150,000 |
| 50K |
40,000-60,000 |
150K |
130,000-180,000 |
| 60K |
50,000-70,000 |
200K |
≥180,000 |
PHYSICAL AND CHEMICAL PROPERTIES:
* Particle size: 98.5% passes through 100 mesh; 100% passes through 80 mesh.
* Charring temperature: 280-300ºC.
* Bulk density: 0.25-0.70 g/cm3 (Usually around 0.5 g/cm3 )
* Real specific gravity: 1.26-1.31.
* Browning temperature: 190-200ºC.
* Surface tension: (2% water solution) 42-56dyn.cm.
* Properties: Dissolved in water and some organic solvent such as ethanol. propyl alcohol. ethylene chloride, the water solution is of surface activity. It is a nonionic surface active agent. Gelation temperature is different for different grades. For example, among 60RT Hydroxypropyl Methylcellulose, 60 is gelation temperature, Namely, 2% water solution will form gelation at 60%.
PRODUCT DESCRIPTION:
STORAGE:Sealed and kept in a dry place

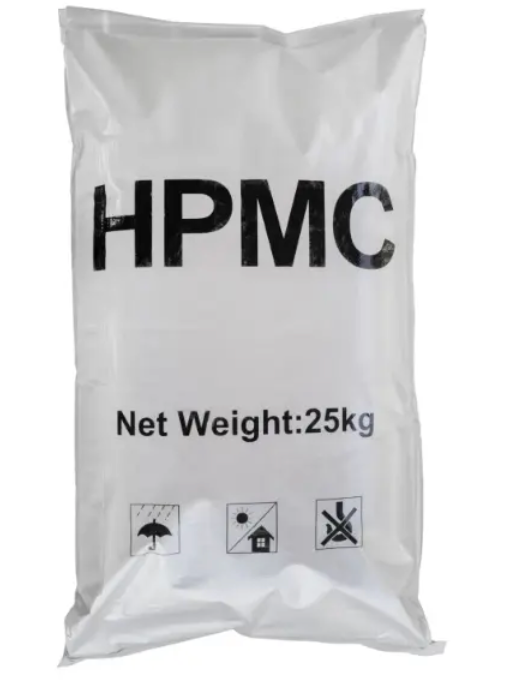

PACKAGE:Woven polypropylene bag
NET WEIGHT:25kg/bag
TECHNICAL DATA SHEET
| INDEX |
UNIT |
TECHNICAL INDICATIONS |
| 60SLO SERIES |
75SLO SERIES |
| HYDROXYPROPYL |
% |
7.0-12.0 |
4.0-12.0 |
| 0.2-0.3 (DS) |
0.1-0.3 (DS) |
| METHOXY |
% |
28.0-32.0 |
19.0-24.0 |
| 1.8-2.0 (DS) |
1.1-1.6 (DS) |
| WATER |
% |
5.0 MAX |
5.0 MAX |
| PARTICLE SIZE |
% |
90% THROUGH 250μm (ASTM MESH NO. 60)
80% THROUGH 125μm (ASTM MESH NO. 120)
80% THROUGH 106μm (ASTMMESH NO. 140) |
| VISCOSITY (2% SOLUTION NDJ) |
MPA.S |
5-200000 |
| GELLING TEMPERATURE |
ºC |
56-64 |
68-90 |
| LIGHT TRANSMITTANCE |
% |
70 MIN |
70 MIN |
| WHITENESS |
% |
75 MIN |
75 MIN |
| PACKING DENSITY |
G/L |
370-420 |
| APPEARANCE |
|
WHITE OR ALMOST WHITE POWDER |
