High-Purity Oxalic Acid for Wafer Cleaning

Oxalic acid and oxalate chemistry appear in selected semiconductor cleaning concepts because oxalate can complex certain metal ions. That does not create a universal wafer-cleaning recipe. Device architecture, exposed films, contamination, water quality, tool materials and downstream rinsing determine whether a chemistry is appropriate. High-purity sourcing therefore begins with a process-specific impurity budget and controlled fab evaluation. This article covers supplier qualification and chemical-delivery controls, not a bath composition or operating instruction.

For industrial qualification, assign purchasing, quality, engineering, operations, logistics and EHS ownership before the first delivery. Approve the specification, analytical methods, sampling point, retained-sample period, storage conditions, transfer equipment, deviation response and release authority in writing. Compare representative lots under controlled conditions and record process performance, mass balance, waste, equipment observations and final quality. This separates raw-material variation from water, equipment, operator or analytical changes. Review the chain from supplier release through carrier, package, receiving connection and day tank because contamination or misidentification can occur after final analysis. Reconcile ordered, received, stored and consumed quantities and investigate unexplained differences. Supplier scorecards should cover documentation accuracy, delivery condition, corrective-action quality and change notification as well as price. Qualify an alternate source before a disruption using the same methods and process criteria. When buyer and supplier results differ, review sample representativeness, temperature, calibration, detection limits and uncertainty before deciding disposition. Confirm emergency contacts, unloading hours and stop-work authority for every shipment. Include maintenance and warehouse teams in post-trial review because they often identify seal, vent, hose or handling issues not visible in a certificate of analysis. Close qualification with an authorized report, approved supplier status and a defined routine-monitoring plan. The current safety data sheet, local law and site procedures control storage, handling, exposure control and emergency response.

Define the contamination problem first

Identify the target metals, particle condition, wafer surfaces, films and process step. Set measurable cleanliness and material-loss limits using the fab’s analytical capability. Avoid treating total metals as a single number when individual ions have very different device impacts.

Use technical literature as context

The US8460474B2 patent record describes oxalic-acid-containing cleaning concepts for selected wafer contamination conditions. Patent examples are technical context, not a process authorization or proof that one formula is compatible with every device stack.

Create an application-specific chemical specification

Set oxalic acid assay, water, residue, particles, anions and individual metallic impurities at reporting limits aligned with the process risk. State sample preparation, blank control, instrument method and units. A label such as electronic grade is useful only when supported by the complete specification and data.

Assess lot-to-lot and container variation

Test multiple lots and samples from representative packages. Compare incoming results with point-of-use chemistry after storage and delivery. This reveals contamination from package, connection, distribution or facility water that a supplier COA cannot show.

Qualify packaging as part of purity

Approve container resin, liner, closure, seal, cleaning, particle control and filling environment. Review extractables and metals relevant to the fab. Define double-bagging, external cleanliness, tamper evidence and connection type for controlled handling.

Protect the point-of-use chain

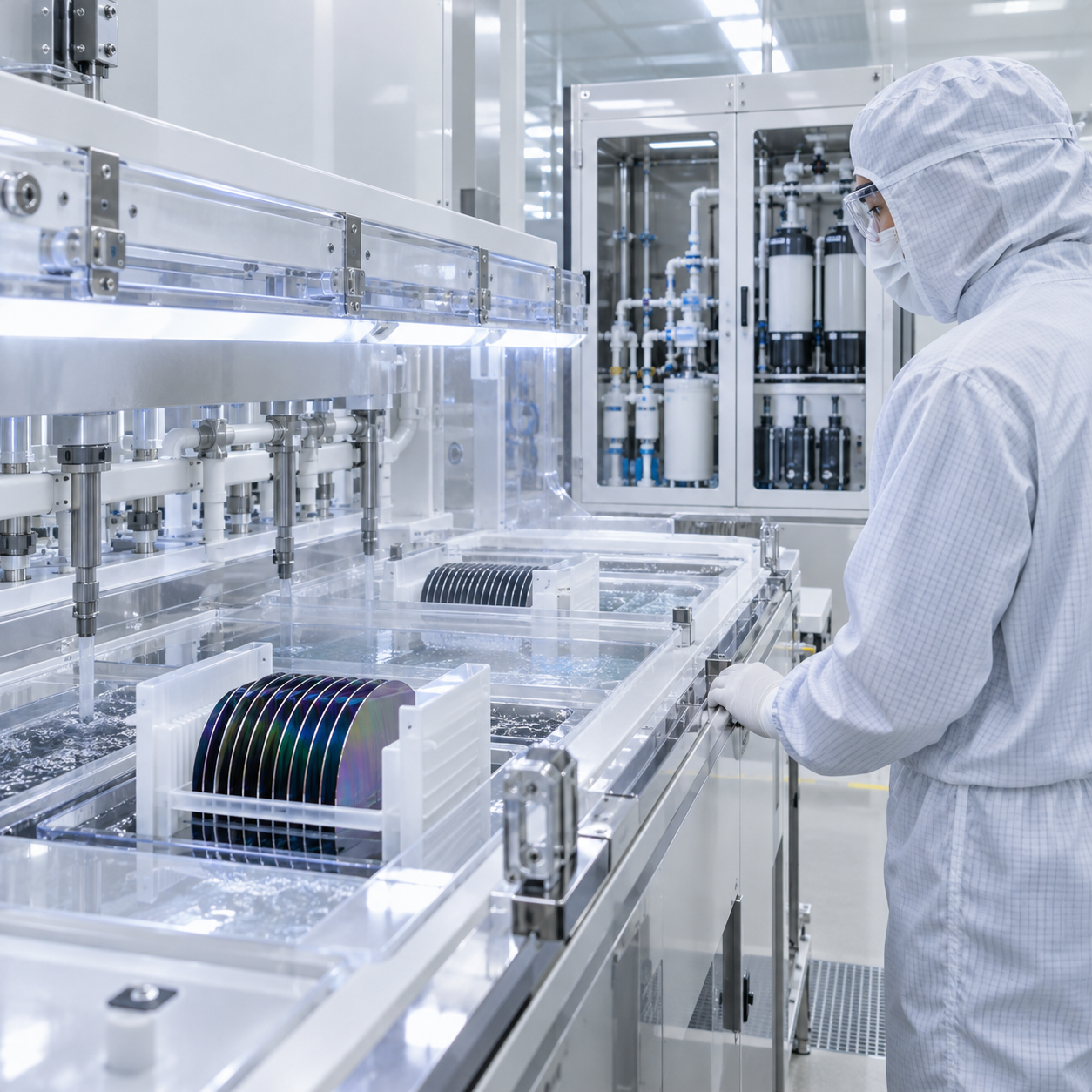

Map the path from receiving through chemical cabinet, day tank, filters, valves and dispense point. Establish flushing, sampling and preventive-maintenance criteria. A high-purity chemical can be compromised by one incompatible fitting or poorly controlled connection.

Validate performance in the actual process window

Use designed trials with the intended tool, substrate, films, temperature and rinse sequence. Measure target-metal removal, particles, surface roughness, film loss, residues and downstream electrical or yield indicators as applicable. Predetermine acceptance criteria before comparing suppliers.

Control changes and excursions

Require advance notification for manufacturing route, purification train, analytical method, raw material, site and package changes. Define disposition for out-of-trend results even when a specification is technically met, because a shift may matter at advanced process sensitivity.

Scale supply under clean governance

Forecast demand by tool and campaign, maintain qualified safety stock and rotate inventory within the approved shelf life. Use lot genealogy, sample retention and supplier scorecards. Requalify after material changes or prolonged interruption rather than assuming prior approval remains valid.

Prepare a high-purity inquiry

Provide impurity limits, methods, reporting limits, packaging, annual demand, destination and change-control expectations. Review the Hiacid oxalic acid product page, then ask whether a matching high-purity supply can be documented.

Related oxalic acid resources

Frequently asked questions

Is every high-assay oxalic acid suitable for wafer cleaning?

No. Trace metals, particles, residue, packaging and process compatibility can matter more than bulk assay alone.

Why test point-of-use samples?

Distribution equipment, packages and handling can add contamination after supplier release.

Does a patent provide a ready-to-run fab process?

No. It is technical context; the fab must perform its own compatibility, safety and performance validation.

Which changes require notification?

Manufacturing site, route, purification, methods, raw materials, filling environment and packaging changes may require review.
