As-produced carbon nanotubes can contain catalyst metals and non-tubular carbon. Nitric acid has been widely investigated for removing metal residues and introducing oxygen-containing groups, but aggressive oxidation can shorten, defect or destroy nanotubes. The right outcome depends on nanotube type, synthesis route, catalyst, agglomeration, acid quality and the intended electrical, mechanical or composite application. A low residual-metal result is not enough if useful nanotube structure is lost. This guide covers nitric acid qualification and safe pilot supply without prescribing reflux, concentration or treatment time.
For industrial qualification, assign purchasing, quality, engineering, operations, logistics and EHS ownership before the first commercial delivery. Approve nitric acid concentration, analytical methods, sampling, storage conditions, compatible transfer equipment, deviation response and release authority in writing. Compare representative lots under controlled conditions and record process performance, mass balance, gas-scrubber operation, waste, equipment observations and final product quality. This separates raw-material variation from changes in water, feedstock, equipment, operator or analytical method. Review the chain from supplier release through carrier, package, receiving connection and day tank because contamination or dilution can occur after final analysis. Reconcile ordered, received, stored and consumed quantities and investigate unexplained differences. Supplier scorecards should cover documentation accuracy, delivery condition, corrective-action quality and change notification as well as price. Qualify a contingency source before a disruption using the same methods and process criteria. When buyer and supplier results differ, review sample representativeness, temperature, standards, calibration, detection limits and uncertainty before deciding disposition. Confirm emergency contacts, unloading hours and stop-work authority for every shipment. Nitric acid is a strong oxidizer and corrosive chemical that can release toxic nitrogen oxides; use the current SDS, compatible segregation, ventilation, containment and an approved emergency plan. The NIOSH Pocket Guide entry and NIH PubChem record provide general hazard and identity context, while local law and site procedures remain controlling. Close qualification with an authorized report, approved-supplier status and a defined routine-monitoring plan.
Define nanotube identity and final use
Record single- or multiwall structure, diameter distribution, length, catalyst type, amorphous carbon, moisture and surface treatment. Set end-use requirements for conductivity, dispersion, reinforcement, sensing or functionalization.
Create paired purity and damage criteria
Measure catalyst removal together with mass yield, length distribution, Raman indicators, thermal behavior, surface oxygen and application performance. The optimum point balances purity with structural preservation.
Use published evidence cautiously
A systematic Journal of Physical Chemistry B study found nitric acid removed catalyst from selected single-wall nanotubes while also causing significant nanotube destruction. This is a reason for controlled comparison, not a universal rejection or recipe.
Test representative production material
Use multiple nanotube and acid lots, untreated controls and validated analytical methods. Track filtration loss and samples at each stage to distinguish chemical damage from mechanical handling or incomplete recovery.
Specify nitric acid for advanced materials
Control concentration, chloride, sulfate, metals, residue and particulate contamination. Incoming trace metals can confound the very catalyst-removal measurements used to judge purification.
Qualify water, filters and containers
High-purity rinse water, compatible filter media and clean storage are part of the process. Measure residual nitrate and ions in washed material using justified endpoints linked to downstream performance.

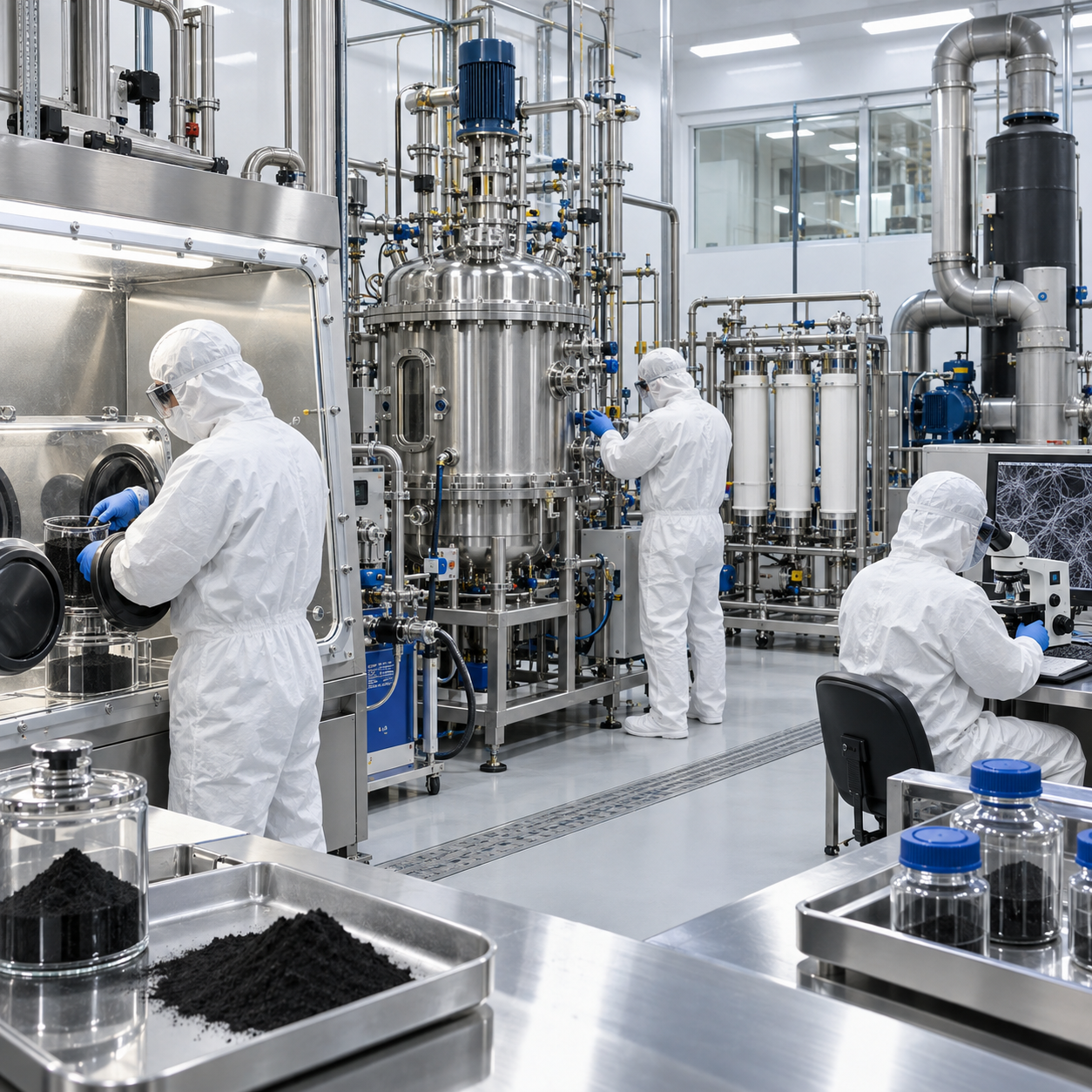

Engineer acid and nanopowder containment
Nitric acid can release NOx, while dry nanotube powders present inhalation and contamination concerns. Use closed charging, local containment, compatible reactors, heat removal, scrubbing and sealed discharge.
Validate drying and redispersion
Drying can create hard agglomerates or alter functional groups. Compare drying methods, redispersion, bulk density and downstream compounding before approving a commercial process.
Stage supply with materials evidence
Begin with documented small packages and progress only after reproducible purity, yield and application results. Require lot genealogy, retained samples, deviations and advance change notice.
Prepare a nanotube-development inquiry
Provide concentration, trace limits, trial volume, package, destination and quality documents. Review the Hiacid nitric acid product page, then request a high-purity supply assessment.
Related nitric acid resources
- Nitric Acid for Aluminum Bright Dipping and Process Control
- Nitric Acid for Tungsten Carbide Scrap Recycling Trials
- Nitric Acid for Activated Carbon Surface Modification
Frequently asked questions
Does stronger nitric acid always produce purer nanotubes?
No. More aggressive oxidation may remove catalyst while damaging or destroying useful nanotube structure.
Which results should be paired with residual metal?
Mass yield, length, Raman or thermal indicators, surface chemistry and end-use performance should be evaluated together.
Why control trace metals in the acid?
They can contaminate the nanotubes and distort catalyst-removal measurements.
How should nanotube powder exposure be controlled?
Use closed powder handling, suitable containment, ventilation and site-specific industrial hygiene controls.
