Oxalic Acid for Manganese Residue Recovery

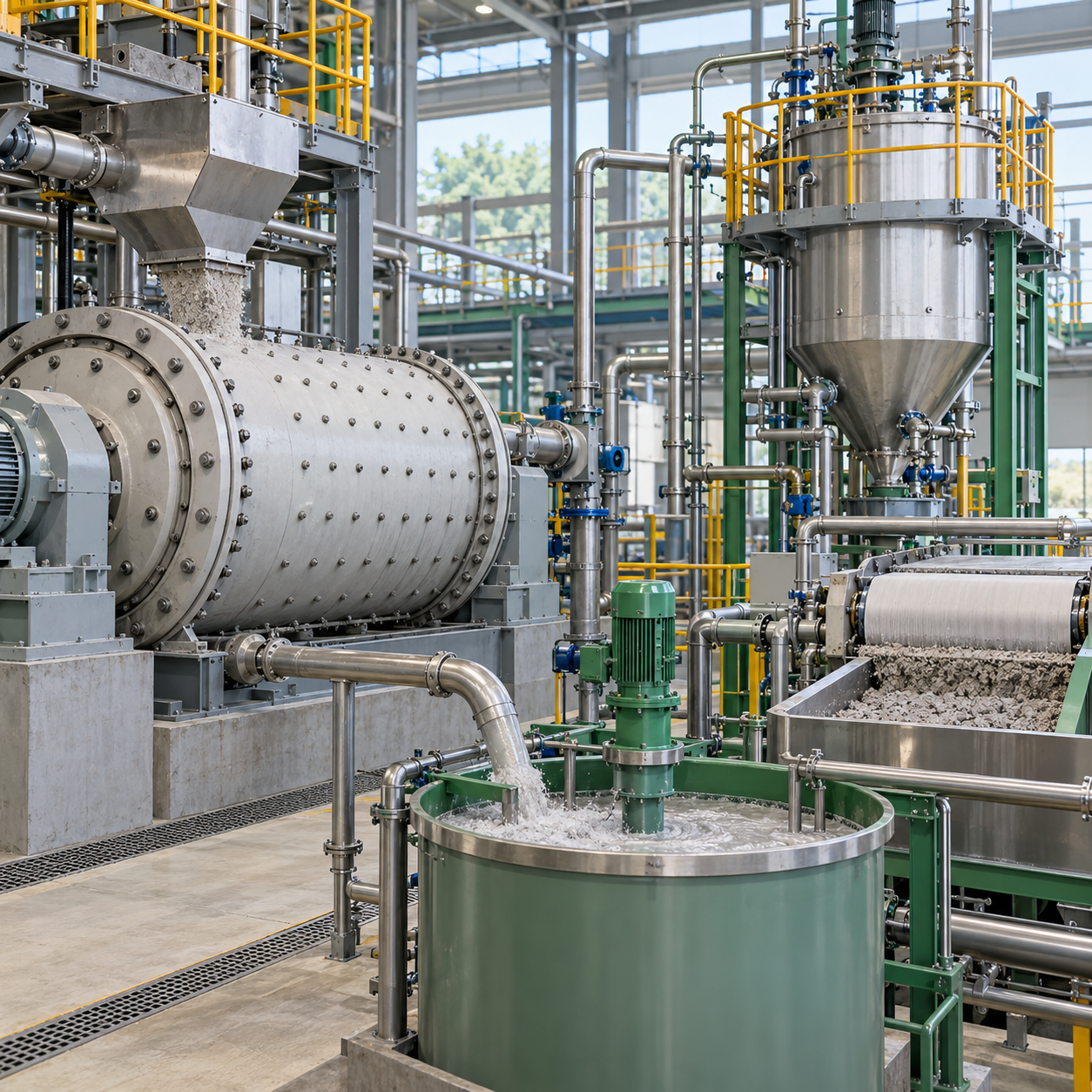

Electrolytic manganese production leaves a fine residue containing manganese, sulfate, ammonia-related species, gypsum, silica and other metals. Its high moisture content and variable mineralogy make transport and reuse difficult. Research has examined mechanochemical activation with oxalic acid to improve manganese recovery under defined conditions. The concept may reduce the severity of conventional leaching, but grinding energy, reagent demand, dust control, water balance and the quality of both recovered manganese and final residue determine commercial value. Pilot work should represent the actual residue and integrate activation, leaching, separation and effluent management from the beginning.

For B2B implementation, assign owners in process engineering, quality, production, purchasing and EHS before the first delivery. Approve the sampling plan, receiving tests, storage conditions, dosing basis, deviation response and retained-sample period in writing. Compare representative oxalic acid lots under identical operating conditions and record mass balance, product quality, waste load, energy and equipment observations. Define who may approve a temporary deviation and what evidence is required before release. Review transportation, packaging, unloading and moisture control alongside the supplier’s laboratory data. Close every trial with an updated material specification, a documented conclusion and clear requalification triggers. Procurement should confirm lead time, minimum order, container loading, port documentation and contingency stock. Quality teams should trend results instead of recording only pass or fail, while production records actual consumption per tonne of acceptable output. A periodic supplier review can combine delivery performance, complaint response, COA trends and process results into one evidence-based decision. This disciplined approach separates raw-material variation from feed, equipment or operating changes and supports faster investigation if recovery or purity shifts. Before scale-up, repeat the trial at the expected operating solids, residence time and recycle ratio. Sample during startup, stable operation and shutdown because transient conditions can expose impurity or filtration problems hidden by a short batch test. Document calibration, detection limits and calculation formulas so laboratories can reproduce the reported recovery. Include raw material, utilities, labor, maintenance, waste treatment and working inventory in the economic model. Finally, review emergency isolation, secondary containment, labeling and worker training before commissioning. These controls turn a promising laboratory result into an auditable process-development package and help the buyer compare technical offers on the same basis.

Create a representative residue profile

Sample fresh and aged residue across operating campaigns. Report moisture, particle size, manganese, iron, calcium, magnesium, sulfate, ammonium species and regulated elements. Use mineralogical analysis to identify manganese-bearing phases and changes caused by storage.

Define recovery and reuse endpoints

Set targets for manganese recovery, product purity, residual leachability, sulfate load, ammonia release and possible use of the treated solid. Define analytical methods and dry or wet bases before comparing results.

Evaluate mechanochemical evidence carefully

A peer-reviewed study indexed by PubMed reports oxalic-acid-assisted mechanochemical recovery of manganese from electrolytic manganese residue. Its mill, energy input and feed are specific to that investigation.

Reproduce energy input, not only milling time

Mill type, media, fill, speed and batch size control impact energy and activation. Record specific energy, temperature and particle-size change. Scaling by minutes alone can produce a chemically different material.

Measure manganese through every operation

Analyze activated solid, leach solution, wash, recovered product and final residue. Track iron, calcium and magnesium because they affect selectivity and product purity. Include solution retained in filter cake when closing the balance.

Identify oxalate phases and reaction pathways

Characterize manganese oxalate or other precipitates where they form. Determine whether the next step requires dissolution, calcination or direct use, and measure the effect on yield, purity and energy demand.

Pilot filtration, emissions and water recycle

Fine residue can settle slowly, blind filters and retain liquor. Test thickening, filtration and washing at realistic solids loading. Recycle water for several campaigns to observe sulfate and impurity accumulation.

Control dust, ammonia and equipment wear

Use enclosed residue and acid charging, local exhaust, suitable respiratory protection and verified ventilation. Assess ammonia release during pH changes and abrasion of mills, pumps and seals. Qualified EHS personnel should approve safeguards.

Qualify oxalic acid for consistent activation

State dihydrate or anhydrous form, assay basis, insolubles, iron and other metals important to the recovered product. Compare several lots under standardized energy input and retain samples for troubleshooting.

Request supply for phased trials

Share trial scale, required specification, package, destination and forecast. Review the Hiacid oxalic acid product page, then request documents and pricing for laboratory and pilot stages.

Related oxalic acid resources

Frequently asked questions

Is milling time enough to scale a mechanochemical process?

No. Specific energy, mill geometry, media, fill and temperature must also be reproduced or correlated.

Does high manganese extraction prove a viable process?

No. Product purity, energy, reagent use, filtration, water treatment and residue compliance also matter.

Why test fresh and aged residue?

Storage can change moisture, mineral phases, soluble salts and leaching behavior.

What oxalic acid information supports repeatability?

Specify form, assay basis, insolubles, relevant metals, test methods, packaging and lot traceability.
