Oxalic acid is used in hydrometallurgy for leaching, precipitation and selective metal handling, but spent liquors may retain valuable acid together with hydrochloric acid, cobalt and other dissolved metals. Recovering oxalic acid can reduce fresh reagent consumption and wastewater load if the recovered stream is sufficiently pure and the separation does not create a larger solvent, energy or residue burden. The correct technology depends on acid speciation, metal loading, chloride, water balance and the quality required for reuse. Evaluation should therefore compare recovery and purge options over repeated cycles rather than report a single extraction percentage.

For B2B implementation, assign owners in process engineering, quality, production, purchasing and EHS before the first delivery. Approve the sampling plan, receiving tests, storage conditions, dosing basis, deviation response and retained-sample period in writing. Compare representative oxalic acid lots under identical operating conditions and record mass balance, product quality, waste load, energy and equipment observations. Define who may approve a temporary deviation and what evidence is required before release. Review transportation, packaging, unloading and moisture control alongside the supplier’s laboratory data. Close every trial with an updated material specification, a documented conclusion and clear requalification triggers. Procurement should confirm lead time, minimum order, container loading, port documentation and contingency stock. Quality teams should trend results instead of recording only pass or fail, while production records actual consumption per tonne of acceptable output. A periodic supplier review can combine delivery performance, complaint response, COA trends and process results into one evidence-based decision. This disciplined approach separates raw-material variation from feed, equipment or operating changes and supports faster investigation if recovery or purity shifts. Before scale-up, repeat the trial at the expected operating solids, residence time and recycle ratio. Sample during startup, stable operation and shutdown because transient conditions can expose impurity or filtration problems hidden by a short batch test. Document calibration, detection limits and calculation formulas so laboratories can reproduce the reported recovery. Include raw material, utilities, labor, maintenance, waste treatment and working inventory in the economic model. Finally, review emergency isolation, secondary containment, labeling and worker training before commissioning. These controls turn a promising laboratory result into an auditable process-development package and help the buyer compare technical offers on the same basis.

Define the side stream and reuse requirement

Measure free acidity, oxalate, hydrochloric acid, cobalt, nickel, iron, calcium, chloride, organics and suspended solids over multiple campaigns. Record temperature and upstream conditions.

Set a fit-for-purpose recovered-acid specification

Specify oxalate concentration, water, chloride and metal limits for the receiving step. Recovered acid need not resemble virgin product if controlled impurities are acceptable, but every limit must be supported by recycle trials.

Evaluate published separation evidence

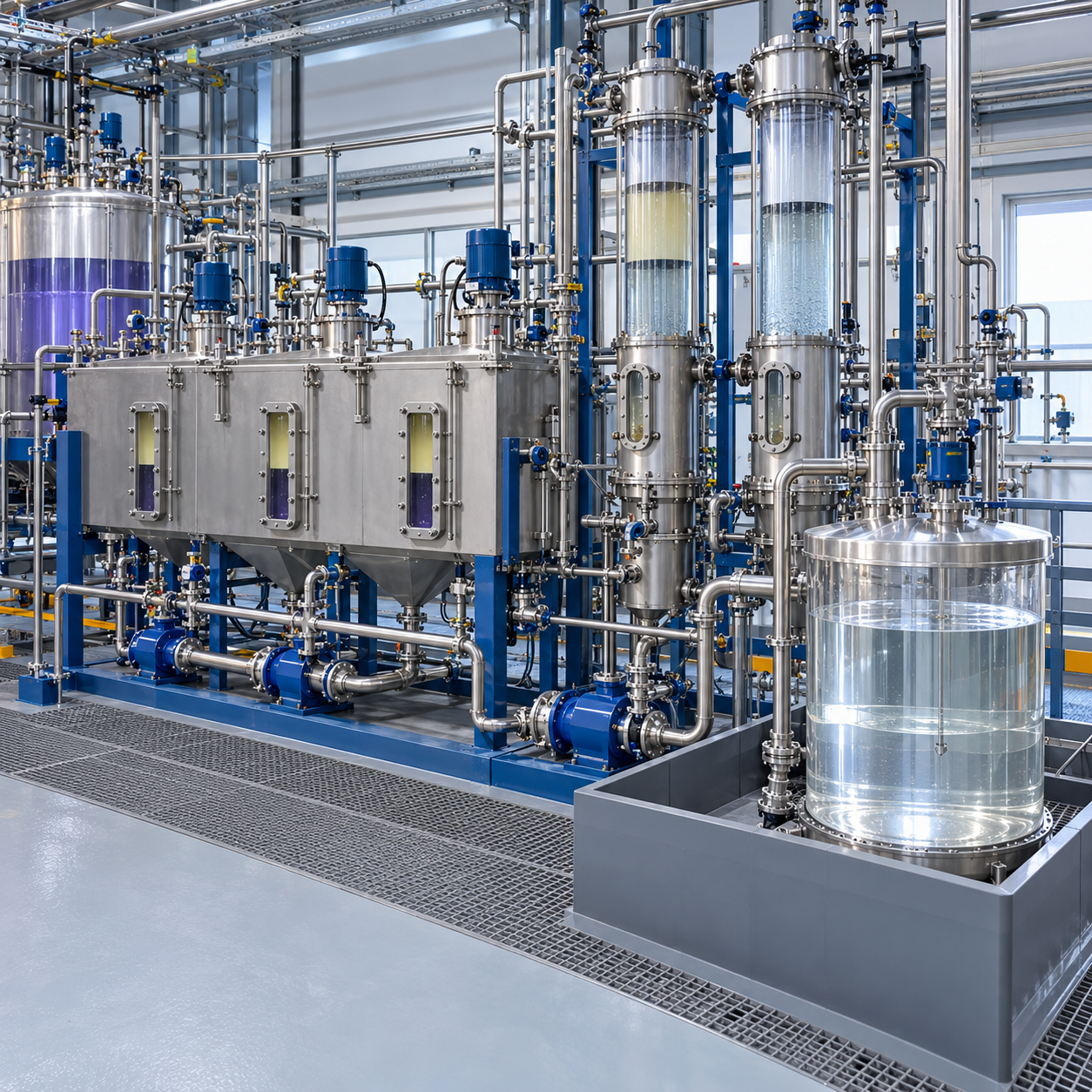

A Minerals Engineering study investigates recovery of oxalic acid from a cobalt-containing hydrochloric-acid side stream by solvent extraction. Its phase ratios and composition are a starting point only.

Map distribution and selectivity

Generate equilibrium data across expected acid and metal concentrations. Measure oxalic acid, hydrochloric acid and metals in both phases. Check loading capacity, entrainment and third-phase behavior instead of relying on nominal reagent selectivity.

Design extraction, stripping and solvent care

Optimize stage count, phase ratio, contact and settling time, temperature and stripping conditions with representative liquor. Monitor solvent degradation, crud, water transfer and extractant loss.

Close acid and impurity balances

Reconcile oxalate, chloride, water and metals across recovered acid, raffinate, strip, wash, organic inventory and losses. Include sampling and entrainment. Mass balance reveals whether apparent recovery is usable acid or merely transferred contamination.

Prove recycle performance over campaigns

Return recovered acid to the actual hydrometallurgical operation for multiple cycles. Track product recovery, purity, filtration, kinetics and impurity accumulation. Establish a purge strategy and acceptance test for every recovered batch.

Assess process safety and environmental load

Review solvent flammability, ventilation, static control, material compatibility, secondary containment and fire protection with qualified engineers. Compare energy, solvent loss, wash water, purge treatment and life-cycle waste against purchasing fresh acid.

Keep virgin oxalic acid under control

A recovery circuit still needs consistent make-up acid. Specify form, assay, insolubles, iron and relevant trace metals, and use the same basis in inventory and dosing calculations. Retain samples when investigating a process shift.

Prepare a make-up supply plan

Estimate fresh-acid demand at normal recovery, startup and upset conditions. Review the Hiacid oxalic acid product page, then request pricing and logistics support for reliable make-up supply.

Related oxalic acid resources

• Oxalic Acid for Niobium and Tantalum Recovery
• Oxalic Acid for Tin Recovery from Zinc Leaching Residue
• Oxalic Acid for Electrolytic Manganese Residue Recovery

Frequently asked questions

Is a high extraction percentage enough to justify acid recovery?

No. Recovered-acid purity, solvent loss, stripping, recycle performance, waste and operating cost must also be proven.

Why run several recycle campaigns?

Chloride, metals and solvent-derived impurities can accumulate gradually and affect product quality or kinetics.

Does recovered acid need the same specification as virgin acid?

Not necessarily. It needs a fit-for-purpose specification validated in the receiving process, with controlled purge and monitoring.

What should be measured in both phases?

Track oxalate, mineral acid, water, target metals, impurities, entrainment and solvent condition to close the balance.
